PLANET 5-Port Gigabit Ethernet Switch

Planet

Model: GSD-503

PLANET GSD-503 Green Networking Switch is specially designed to meet the current trend for energy savings worldwide. The GSD-503, a 5-port Gigabit Ethernet Switch, brings both benefits of energy savings and Gigabit wire speed performance to home networking, SOHOs and enterprises.

Model: GSD-503

Hardware Specification
Hardware Version 7
10/100/1000Base-T Ports 5 Auto MDI/MDIX ports
LED Display One for Power, Two for 1000 & Link / Act per port
Enclosure Metal
Dimensions (W x D x H) 86 x 155 x 26 mm
Weight (g) 317g
Power Requirements (External power adapter) 5V DC, 1A
Power Consumption (100M Full operating) 3.3 watts / 11 BTU
Switch Specification
Switch Processing Scheme Store-and-Forward
Address Table 2K
Flow Control Back pressure half duplex
IEEE 802.3x pause frame full duplex
Switch fabric 10Gbps
Throughput (packet per second) 7.44Mpps
Jumbo packet size 9K
Standards Conformance
Standards Compliance IEEE 802.3 (Ethernet)
IEEE 802.3u (Fast Ethernet)
IEEE 802.3ab (Gigabit Ethernet)
IEEE 802.3x (Full-duplex Flow Control)
IEEE 802.3az Energy Efficient Ethernet (EEE)
Regulation Compliance FCC Part 15 Class B, CE
Environments
Temperature Operating: 0~50 degrees C
Storage: -10~70 degrees C
Humidity Operating: 5% to 95%, Storage: 5% to 95% (non-condensing
SKU: GSD-503 Categories: , Tags: , ,

Overview

Brand

Planet

Ports

5

Energy Savings

The GSD-503 incorporates two advanced Green Networking technologies and is able to provide power savings of up to 40% but maintains high performance efficiently.

(1)  Hibernation Link Down power saving

The Hibernation Link Down power saving goes beyond IEEE specifications to automatically lower power for a given port when it is not linked. With the Hibernation Link Down power saving technology, the GSD-503 will automatically adjust power usage of the ports that are shut down or not connected to network device.

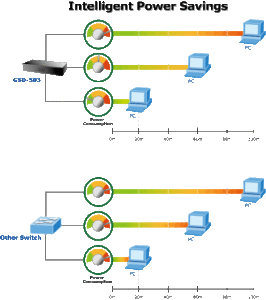

(2)  Intelligent use of power based on cable length

Intelligent use of power uses an intelligent algorithm that actively determines the appropriate power level based on cable length. When the GSD-503 is connected with Ethernet cable shorter than 20m, a device can obtain maximum power savings because the GSD-503 would automatically detect the Ethernet cable length and diminish power usage. The connected device can substantially reduce the overall power consumption, which makes a significant contribution to energy savings.



Leading Home, SOHO and Workgroup Users to High-speed Networking Generation

The GSD-503 is designed with modern metal compact housing and easy for deployment of high speed Gigabit networking in home or SOHO applications.  Providing 10Gbps internal switching fabric, the GSD-503 can handle an extremely large amount of data in a secure topology linking to a backbone or high capacity servers. The GSD-503 provides 2K MAC address table, and offers wire-speed packet transfer performance without risk of packet loss. The high data throughput of the device makes it ideal for most Gigabit environments, especially for the network to be upgraded to a Gigabit environment.



Plug & Play

All RJ45 copper interfaces of the GSD-503 support 10/100/1000Mbps auto-negotiation for optimal speed detection through RJ45 Category 5, 5e or 6 cables. They support standard auto-MDI/MDI-X feature which can detect the type of connection to any Ethernet device without requiring special straight-through or crossover cables.
