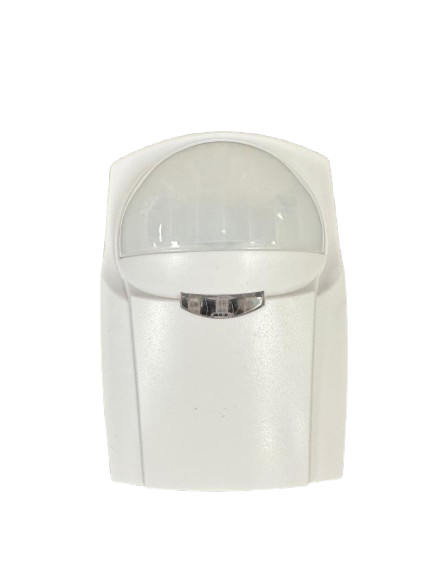

PIR Motion Sensor MS-215

The MS215 is an entry level passive infrared motion
sensor. Dip switch setting, a large wiring channel and mounting
flexibility make the MS215 easy to install.

Compromising the MS215 is inhibited by the look-down.
zones, tamper switch, sabotage-resistant lens design and the magnet-proof relay.
All these factors make the MS215 an ideal sensor for residential and light commercial applications


  • Cannot be compromised by a magnet
  • Dip switches for easy setting of parameters
  • Improved RF immunity

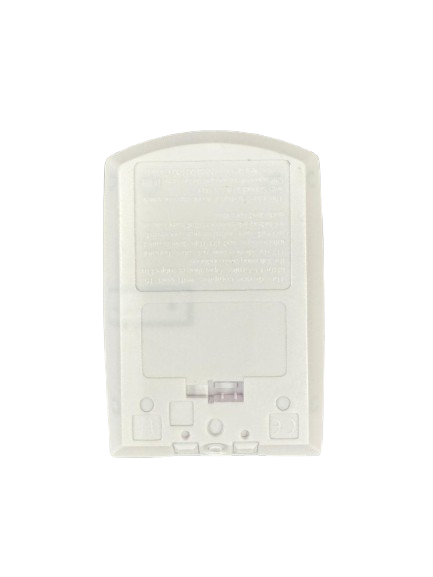

  • Large wiring channel on back to allow surface wiring
  • Patented look-down mirror provides optimum detection directly beneath the sensor
  • Wall-mount and corner mount knockouts provides mounting flexibility
  • Sabotage-resistant lens design
  • Selectable sensitivity
  • Tamper switch: activates before access to the circuitry is possible
  • White Light Immunity of minimum 6500 Lux reduces the chance of false activiation
  • Bug guard prevents insects access to the sensor optics which reduces the chance of false activation
  • Designed for residential and light commercial applications
  • Silent relay allows for use in quiet environments
