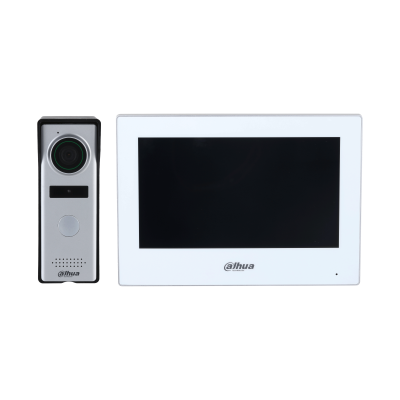

4Wire-Hybrid-Video-Intercom

DHI-VTH2624GW-WP

System

Main Processor

Embedded Processor

Operating System

Embedded operating system

Network Protocol

UDP; TCP; FTP; IPv4; DNS; RTSP; SSH; SIP; P2P; RTP

Interoperability

ONVIF

Basic

Screen Type

Capacitive Touchscreen

Display Screen

7″ TFT

Screen Resolution

1024 (H) × 600 (V)

Audio Compression

G.711a; G.711u; PCM

Audio Input

1 channel

Audio Output

Built-in speaker

Audio Mode

Two-way audio with VTO (half–duplex); Two-way audio with app (full–duplex)

Audio Enhancement

Echo suppression/digital noise reduction

Audio Bit Rate

16 KHz; 16 Bit

Function

Communication Mode

Full digital; Analog

Information Release

Receive and view text information released by the management center

Leave Videos

Yes (SD card needed)

DND Mode

Do not disturb period can be set; Do not disturb mode can be set

Number of Extensions

Villa: 9 digital extensions and 2 analog extensions
Apartment: 4 digital extensions and 2 analog extensions

Wi-Fi

Yes

Wireless Standard

IEEE802.11b; 802.11g; 802.11n

Wireless Frequency Range

2.4 GHz

Storage

Micro SD card (up to 64 GB)

Port

RS-485

1

Alarm Input

6

Alarm Output

1

Power Output

1 (12 V, 200 mA)

Door Bell

Yes (use the alarm input port)

Network Port

1 × RJ-45 10/100 Mbps Ethernet port

4-wire

4

Performance

Casing Material

PC and ABS

General

Appearance Color

White

Power Supply

12 VDC, 1 A
Standard PoE

Power Adapter

Optional

Installation

Surface Mount

Certifications

CE

Accessory

Included:
Power cord
485 and Power output ribbon cable
alarm ribbon cable
bracket

Product Dimensions

189.57 mm × 134.57 mm × 26 mm (7.46″ × 5.30″ × 1.02″)

Operating Temperature

–10 °C to +55 °C (+14 °F to +131 °F)

Operating Humidity

10%–90% (RH)

Operating Altitude

0 m–3000 m (0 ft–9842.52 ft)

Power Consumption

≤3.8 W (standby), ≤8.9 W (working)

Gross Weight

604 g (1.33 lb)

Storage Temperature

0 °C to 40 °C (+32 °F to +104 °F)

Storage Humidity

30%–75%

Anti-corrosion Level

Basic Protection

Operating Environment

Indoor

DHI-VTO1000J

System

Button Type

Mechanical

Basic

Camera

1.3MP CMOS

Field of View

Horizontal: 70°
Vertical: 40°

WDR

DWDR

Illuminator Type

Auto IR

Day/Night

ICR auto switch

Audio Input

1 channel to the microphone; pickup distance 0.5 m

Audio Output

1 channel to the speaker

Status Indicator

1 indicator light
Green: Power on

Function

Communication Mode

Analog

Unlock Mode

Local unlock

Performance

Casing

PC + ABS

Port

Exit Button

1

Door Status Detection

1

General

Color

Silver

Power Supply

Powered by indoor monitor

Installation

Surface mount

Certifications

CE/FCC

Accessory

Rain cover (included)

Dimensions

131.45 mm × 46.00 mm × 33.80 mm

(5.18″ × 1.81″ × 1.33″)

Protection Grade

IP66 (Apply silicon sealant to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.)

Operating Temperature

-30°C to +60°C (-22°F to +140°F)

Operating Humidity

10%RH–95%RH

Power Consumption

≤ 1W (standby)
≤ 3W (working)

Net Weight

0.18 kg (0.40 lb)

Gross Weight

0.38 kg (0.84 lb)
