DIGITALNET 2-Port PoE Repeater Ethernet SwitchMode

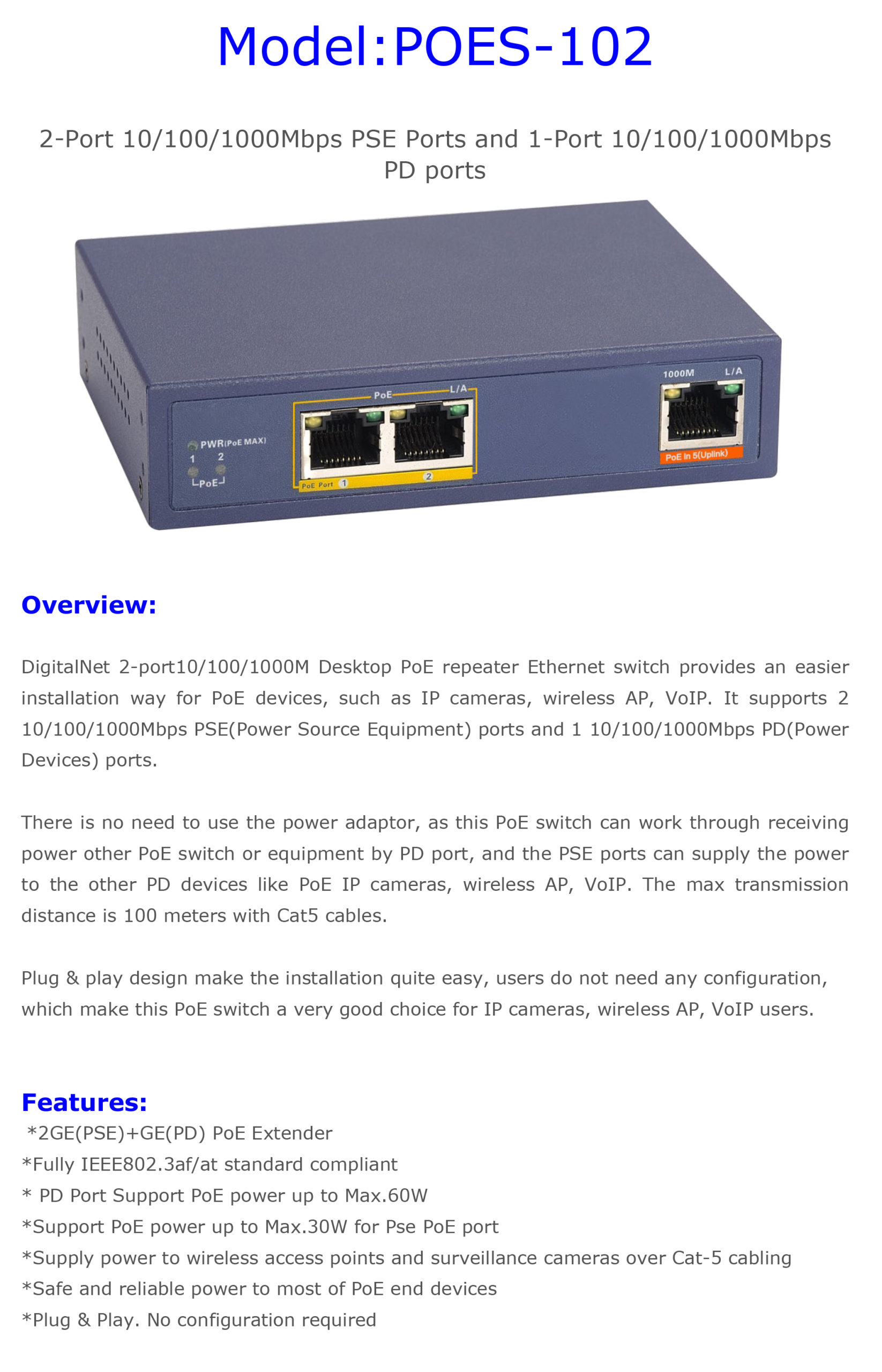

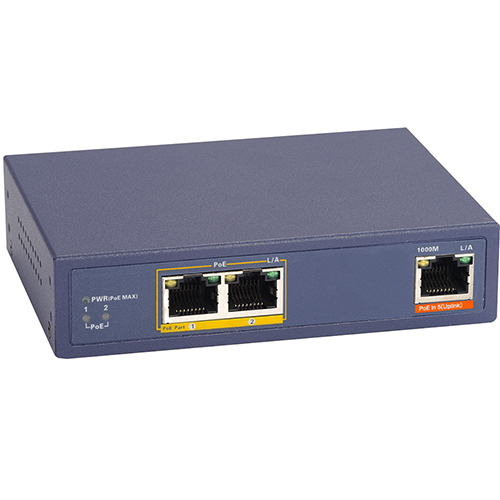

POES-102 is a self-developed one-in-two-out Gigabit POE Repeater Switch which provides three 10/100/1000M adaptive RJ45 ports. Each RJ45 port supports MDI/MDIX auto flip-flop and wire-speed forwarding. The PoE1 and PoE2 ports are PoE power supply ports, which support IEEE802.3af/at standard PoE power supply; the PoE IN port is a powered port, which can be powered directly by the PoE switch through the network cable. The POES-102 supports 3-5 cascade layers for power tolerance, effectively saving wiring costs and reducing construction difficulties.

PoE power supply capacity

• PoE IN can receive up to 30W of power
• The maximum output power of a single port is less than 30W
• Automatic detection and identification of standard PoE-powered devices, intelligent power supply, no burning of non-standard PoE-powered devices or common devices

Product Reliability

• Low power consumption design of host and natural heat dissipation to ensure stable operation of the product
• High redundancy design to provide long-term stable PoE power output
• 0~45℃ working temperature to enhance the stability of the product in a wide temperature environment

Easy to operate

• Plug-and-play, no configuration required, simple and convenient
• Users can easily understand the working status of the device through PoE (PoE indicator); Link/Act (link/activity indicator)
